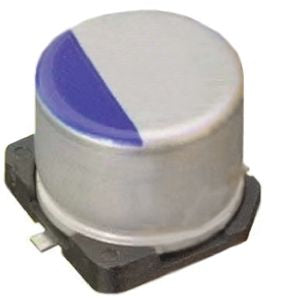

NIC Components 220μF 16V dc Aluminium Electrolytic Capacitor, Surface Mount 6.3 (Dia.) x 8mm +85°C 6.3mm 2.2mm [NACE221M16V6.3X8TR13F]; 737-9640
0₫
Mã kho: 7379640
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 16 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 6.3 (Dia.) x 8mm |
| Height | 8mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 2.2mm |
| Lifetime | 2000h |
| Series | NACE |
| Polarised | Polar |
| Leakage Current | 35.2 μA |
| Tolerance | ±20% |
| Ripple Current | 150mA |
| Equivalent Series Resistance | 1.21Ω |
