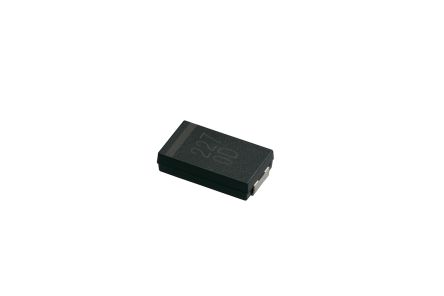

Murata 330μF 2V dc Aluminium Polymer Capacitor, Surface Mount 7.3 x 4.3 x 2.8mm +105°C 7.3mm [ECASD60D337M007K00]; 172-3122
by Murata
0₫
Mã kho: 1723122
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 330 µF |
| Voltage | 2 V dc |
| Mounting Type | Surface Mount |
| Technology | Polymer |
| Dimensions | 7.3 x 4.3 x 2.8mm |
| Height | 2.8mm |
| Length | 7.3mm |
| Depth | 4.3mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Series | ECAS |
| Dissipation Factor | 0.0006 |
| Equivalent Series Resistance | 7mΩ |
| Ripple Current | 3.5A |
| Tolerance | ±20% |
| Leakage Current | 66 μA |
| Polarised | Polar |
