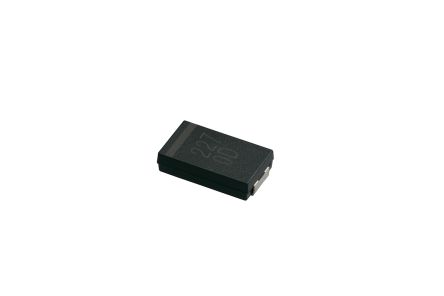

Murata 15μF 25V dc Aluminium Polymer Capacitor, Surface Mount 7.3 x 4.3 x 1.9mm +105°C 7.3mm [ECASD41E156M040KA0]; 173-6391
by Murata
0₫
Mã kho: 1736391
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 15 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 7.3 x 4.3 x 1.9mm |
| Height | 1.9mm |
| Length | 7.3mm |
| Depth | 4.3mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Series | ECAS |
| Leakage Current | 112.5 μA |
| Tolerance | ±20% |
| Ripple Current | 1.6Arms |
| Dissipation Factor | 0.0012 |
| Polarised | Polar |
| Equivalent Series Resistance | 40mΩ |
