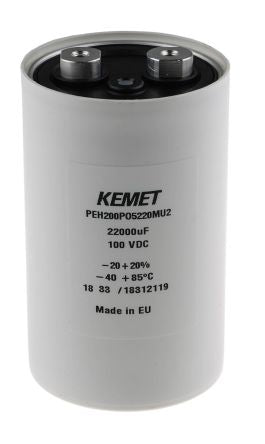

KEMET 22000μF 100V dc Aluminium Electrolytic Capacitor, Chassis Mount 66.6 (Dia.) x 106 mm, 66.6 x 109.2 mm +85°C [PEH200PO5220MU2]; 173-4280
by KEMET
0₫
Mã kho: 1734280
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 22000 µF |
| Voltage | 100 V dc |
| Mounting Type | Screw Mount |
| Technology | Electrolytic |
| Dimensions | 66.6 (Dia.) x 106 mm, 66.6 x 109.2 mm |
| Height | 106 mm, 109.2 mm |
| Length | 109.2mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 66.6mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 15000 h @ +85 °C/100V dc/Ir |
| Series | PEH200 |
| Equivalent Series Resistance | 15mΩ |
| Ripple Current | 19.3A |
| Tolerance | ±20% |
| Polarised | Polar |
| Leakage Current | 10.6 mA |
