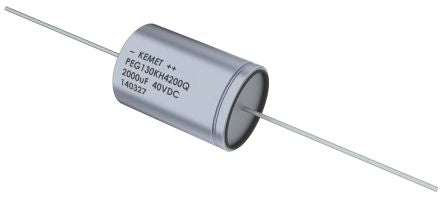

KEMET 2000μF 40V dc Aluminium Electrolytic Capacitor, Through Hole 20 x 29mm +105°C 20mm 29mm [PEG130KH4200QL1]; 870-4671
by KEMET
0₫
Mã kho: 8704671
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 2000 µF |
| Voltage | 40 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 20 x 29mm |
| Length | 29mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 20mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 37000 h @ +105 °C/Ir |
| Series | PEG130 |
| Leakage Current | 244 μA |
| Ripple Current | 1.44 (A @100 Hz 105°C), 2.6 (A @= 5 kHz 105°C), 4 (A @= 5 kHz 100°C), 7.2 (A @= 5 kHz 80°C), 8.8 (A @= 5 kHz 60°C) |
| Polarised | Polar |
| Tolerance | -10 → +30% |
| Equivalent Series Resistance | 17 mΩ @ 5 → 100 kHz (105°C), 32 mΩ @ 100 kHz (20°C) |
