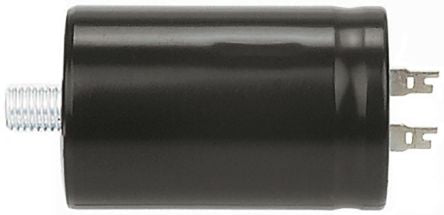

KEMET 10000μF 63V dc Aluminium Electrolytic Capacitor, Stud Mount 35 x 55mm +85°C 35mm 55mm [ALT23A103CD063]; 172-6871
by KEMET
0₫
Mã kho: 1726871
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10000 µF |
| Voltage | 63 V dc |
| Mounting Type | Screw Mount |
| Technology | Electrolytic |
| Dimensions | 35 x 55mm |
| Length | 55mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 35mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 18000 h @ +85 °C/63V dc/Ir |
| Series | ALT23 |
| Polarised | Polar |
| Leakage Current | 3.78 mA |
| Tolerance | ±20% |
| Ripple Current | 4.93 A @ 100Hz |
