![KEMET ALS31A223MF100 3819661](http://nguyenxuong.com/cdn/shop/products/F3819661-01_0e0d6532-d029-4ab5-a0d8-032ffcb984d7_444x350.jpg?v=1594003900)

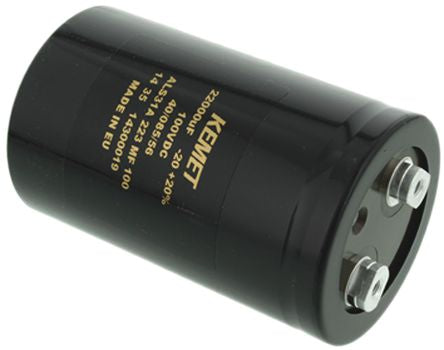

KEMET 22000μF 100V dc Aluminium Electrolytic Capacitor, Stud Mount 66 x 105mm +85°C 66mm 105mm [ALS31A223MF100]; 381-9661
by KEMET
0₫
Mã kho: 3819661
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 22000 µF |
Voltage | 100 V dc |
Mounting Type | Screw Mount |
Technology | Electrolytic |
Dimensions | 66 x 105mm |
Height | 105mm |
Length | 105mm |
Minimum Operating Temperature | -40°C |
Diameter | 66mm |
Maximum Operating Temperature | +85°C |
Lifetime | 19000 h @ +85 °C/100V dc/Ir, 38000 h @ +85 °C/100V dc |
Series | ALS31 |
Equivalent Series Resistance | 13mΩ |
Tolerance | ±20% |
Ripple Current | 18.4A |
Leakage Current | 6 mA |
Polarised | Polar |
