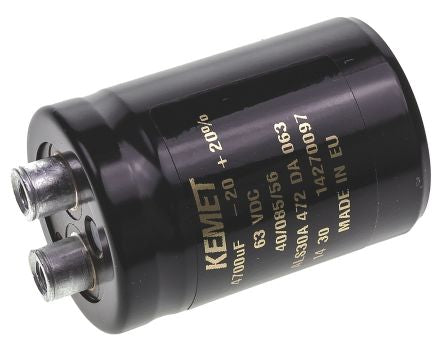

KEMET 4700μF 63V dc Aluminium Electrolytic Capacitor, Chassis Mount 36 x 52mm +85°C 36mm 52mm [ALS30A472DA063]; 381-9087
by KEMET
0₫
Mã kho: 3819087
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 4700 µF |
| Voltage | 63 V dc |
| Mounting Type | Screw Mount |
| Technology | Electrolytic |
| Dimensions | 36 x 52mm |
| Height | 52mm |
| Length | 52mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 36mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 11000 h @ +85 °C/63V dc/Ir, 22000 h @ +85 °C/63V dc |
| Series | ALS30 |
| Tolerance | ±20% |
| Ripple Current | 6.7A |
| Leakage Current | 1.7766 mA |
| Equivalent Series Resistance | 36mΩ |
| Polarised | Polar |
