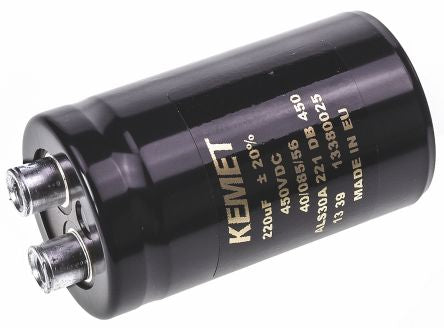

KEMET 220μF 450V dc Aluminium Electrolytic Capacitor, Chassis Mount 36 x 62mm +85°C 36mm 62mm [ALS30A221DB450]; 172-6857
by KEMET
0₫
Mã kho: 1726857
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 450 V dc |
| Mounting Type | Screw Mount |
| Technology | Electrolytic |
| Dimensions | 36 x 62mm |
| Height | 62mm |
| Length | 62mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 36mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 11000 h @ +85 °C/450V dc/Ir, 22000 h @ +85 °C/450V dc |
| Series | ALS30 |
| Ripple Current | 2.4A |
| Equivalent Series Resistance | 502mΩ |
| Leakage Current | 0.594 mA |
| Polarised | Polar |
| Tolerance | ±20% |
