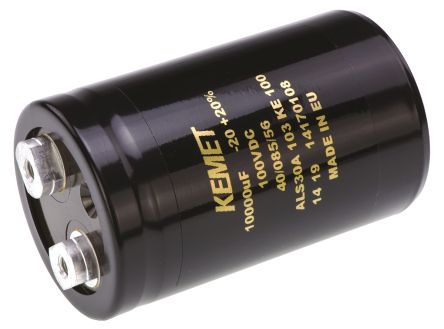

KEMET 10000μF 100V dc Aluminium Electrolytic Capacitor, Chassis Mount 51 x 82mm +85°C 51mm 82mm [ALS30A103KE100]; 381-9188
by KEMET
0₫
Mã kho: 3819188
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10000 µF |
| Voltage | 100 V dc |
| Mounting Type | Screw Mount |
| Technology | Electrolytic |
| Dimensions | 51 x 82mm |
| Height | 82mm |
| Length | 82mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 51mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 18000 h @ +85 °C/100V dc/Ir, 36000 h @ +85 °C/100V dc |
| Series | ALS30 |
| Equivalent Series Resistance | 28mΩ |
| Tolerance | ±20% |
| Ripple Current | 10.1A |
| Polarised | Polar |
| Leakage Current | 6 mA |
