![KEMET ALS30A102KF450 1726914](http://nguyenxuong.com/cdn/shop/products/F3819396-01_444x287.jpg?v=1593751299)

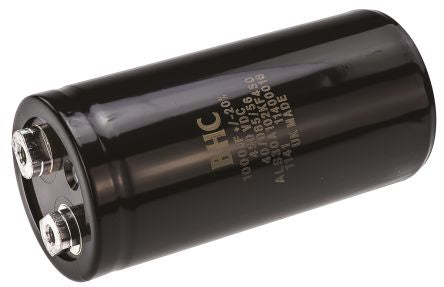

KEMET 1000μF 450V dc Aluminium Electrolytic Capacitor, Chassis Mount 51 x 105mm +85°C 51mm 105mm [ALS30A102KF450]; 172-6914
by KEMET
0₫
Mã kho: 1726914
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 1000 µF |
Voltage | 450 V dc |
Mounting Type | Screw Mount |
Technology | Electrolytic |
Dimensions | 51 x 105mm |
Height | 105mm |
Length | 105mm |
Minimum Operating Temperature | -40°C |
Diameter | 51mm |
Maximum Operating Temperature | +85°C |
Lifetime | 18000 h @ +85 °C/450V dc/Ir, 36000 h @ +85 °C/450V dc |
Series | ALS30 |
Equivalent Series Resistance | 118mΩ |
Ripple Current | 6.5A |
Polarised | Polar |
Tolerance | ±20% |
Leakage Current | 2.7 mA |
