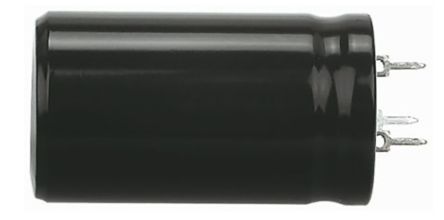

KEMET 680μF 200V dc Aluminium Electrolytic Capacitor, Through Hole 40 x 45mm +85°C 40mm 45mm [ALP22A681DB200]; 173-5128
by KEMET
0₫
Mã kho: 1735128
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 680 µF |
| Voltage | 200 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 40 x 45mm |
| Length | 45mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 40mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 26000 h @ +85 °C/200V dc/Ir |
| Series | ALP22 |
| Ripple Current | 3.34 A @ 100Hz |
| Tolerance | ±20% |
| Leakage Current | 0.816 mA |
| Polarised | Polar |
| Equivalent Series Resistance | 116 mΩ @ 100 kHz |
