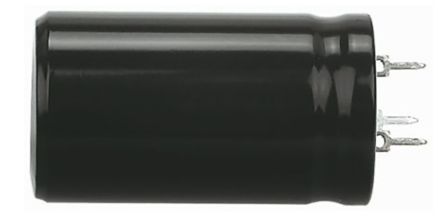

KEMET 470μF 450V dc Aluminium Electrolytic Capacitor, Through Hole 40 x 75mm +85°C 40mm 75mm [ALP22A471DE450]; 227-1355
by KEMET
0₫
Mã kho: 2271355
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 470 µF |
| Voltage | 450 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 40 x 75mm |
| Length | 75mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 40mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 26000 h @ +85 °C/450V dc/Ir |
| Series | ALP22 |
| Leakage Current | 1.269 mA |
| Ripple Current | 2.29 A @ 100Hz |
| Polarised | Polar |
| Tolerance | -10 → +30% |
