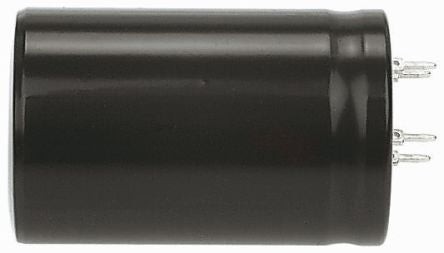

KEMET 220μF 250V dc Aluminium Electrolytic Capacitor, Through Hole 30 x 45mm +85°C 30mm 7.5mm 45mm [ALP20A221BB250]; 105-509
by KEMET
0₫
Mã kho: 105509
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 250 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 30 x 45mm |
| Height | 45mm |
| Length | 45mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 30mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 15000 h @ +85 °C/250V dc/Ir |
| Lead Pitch | 7.5mm |
| Series | ALP20 |
| Tolerance | -10 → +30% |
| Ripple Current | 1A |
| Leakage Current | 0.33 mA |
| Polarised | Polar |
| Equivalent Series Resistance | 750mΩ |
