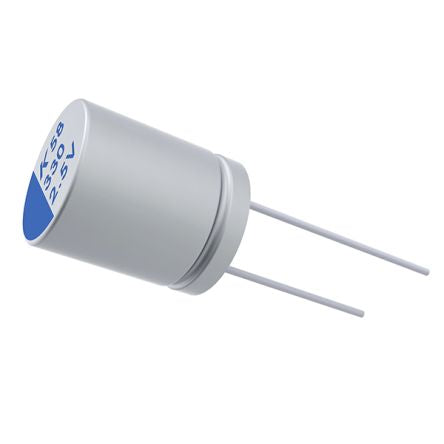

KEMET 680μF 6.3V dc Aluminium Polymer Capacitor, Through Hole 8 Dia. x 8mm +105°C 8mm 3.5mm [A758KK687M0JAAE014]; 173-9284
by KEMET
0₫
Mã kho: 1739284
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 680 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 8 Dia. x 8mm |
| Height | 8mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 3.5mm |
| Lifetime | 5000h |
| Series | A758 |
| Leakage Current | 642.6 μA |
| Ripple Current | 4.1A |
| Dissipation Factor | 0.1 |
| Tolerance | ±20% |
| Equivalent Series Resistance | 14mΩ |
| Polarised | Polar |
