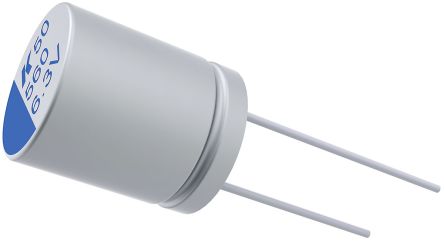

KEMET 470μF 6.3V dc Aluminium Polymer Capacitor, Through Hole 6.3 (Dia.) x 8mm +105°C 6.3mm 2.5mm [A750EK477M0JAAE018]; 124-8258
by KEMET
0₫
Mã kho: 1248258
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 470 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Through Hole |
| Technology | Polymer |
| Dimensions | 6.3 (Dia.) x 8mm |
| Depth | 8mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 2.5mm |
| Lifetime | 2000h |
| Series | A750 |
| Equivalent Series Resistance | 18mΩ |
| Leakage Current | 592.2 μA |
| Ripple Current | 3.1A |
| Tolerance | ±20% |
| Dissipation Factor | 0.12 |
| Polarised | Polar |
