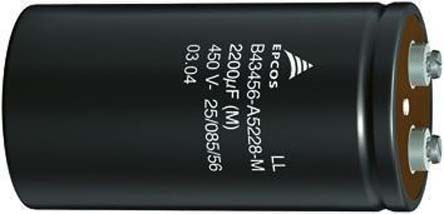

EPCOS 2200μF 400V dc Aluminium Electrolytic Capacitor 64.3 (Dia.) x 105.7mm +105°C 64.3mm [B43560A9228M]; 171-1108
by EPCOS
0₫
Mã kho: 1711108
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 2200 µF |
| Voltage | 400 V dc |
| Mounting Type | Screw Mount |
| Technology | Electrolytic |
| Dimensions | 64.3 (Dia.) x 105.7mm |
| Height | 105.7mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 64.3mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 6000h |
| Series | B43560 |
| Tolerance | ±20% |
| Equivalent Series Resistance | 56mΩ |
| Ripple Current | 7.8A |
