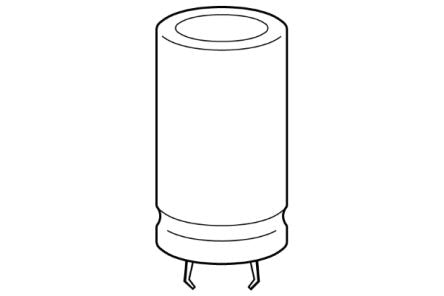

EPCOS 220μF 400V dc Aluminium Electrolytic Capacitor, Through Hole 30 (Dia.) x 30mm +105°C 30mm 10mm [B43545B9227M000]; 171-3227
by EPCOS
0₫
Mã kho: 1713227
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 400 V dc |
| Mounting Type | Snap-In |
| Technology | Electrolytic |
| Dimensions | 30 (Dia.) x 30mm |
| Height | 30mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 30mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 10mm |
| Lifetime | 5000h |
| Series | B43545 |
| Dissipation Factor | 0.0015 |
| Polarised | Polar |
| Tolerance | ±20% |
| Ripple Current | 1.42A |
| Equivalent Series Resistance | 270mΩ |
