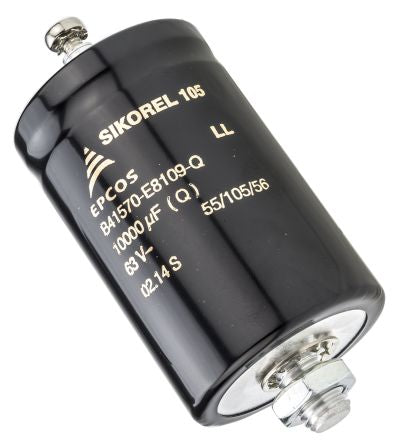

EPCOS 10000μF 63V dc Aluminium Electrolytic Capacitor, Chassis Mount 51.6 (Dia.) x 80.7mm +105°C 51.6mm [B41570E8109Q000]; 478-4112
by EPCOS
0₫
Mã kho: 4784112
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10000 µF |
| Voltage | 63 V dc |
| Mounting Type | Screw Mount |
| Technology | Electrolytic |
| Dimensions | 51.6 (Dia.) x 80.7mm |
| Height | 80.7mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 51.6mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 10000h |
| Series | B41570 |
| Tolerance | -10 to +30% |
| Equivalent Series Resistance | 18mΩ |
| Ripple Current | 13A |
