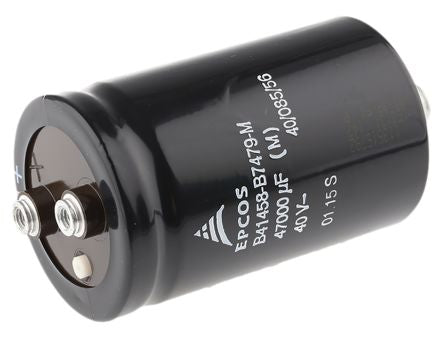

EPCOS 47000μF 40V dc Aluminium Electrolytic Capacitor, Chassis Mount 51.6 (Dia.) x 80.7mm +85°C 51.6mm [B41458B7479M000]; 171-1158
by EPCOS
0₫
Mã kho: 1711158
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47000 µF |
| Voltage | 40 V dc |
| Mounting Type | Screw Mount |
| Technology | Electrolytic |
| Dimensions | 51.6 (Dia.) x 80.7mm |
| Height | 80.7mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 51.6mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 12000h |
| Series | B41458 |
| Tolerance | ±20% |
| Ripple Current | 13A |
| Equivalent Series Resistance | 6mΩ |
