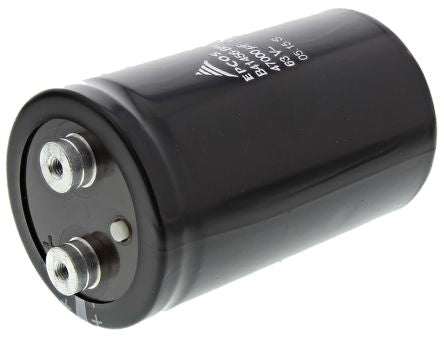

EPCOS 47000μF 63V dc Aluminium Electrolytic Capacitor, Chassis Mount 64.3 (Dia.) x 105.7mm +85°C 64.3mm [B41456B8479M000]; 543-6729
by EPCOS
0₫
Mã kho: 5436729
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47000 µF |
| Voltage | 63 V dc |
| Mounting Type | Screw Mount |
| Technology | Electrolytic |
| Dimensions | 64.3 (Dia.) x 105.7mm |
| Height | 105.7mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 64.3mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 12000h |
| Series | B41456 |
| Tolerance | ±20% |
| Equivalent Series Resistance | 5mΩ |
| Ripple Current | 18A |
