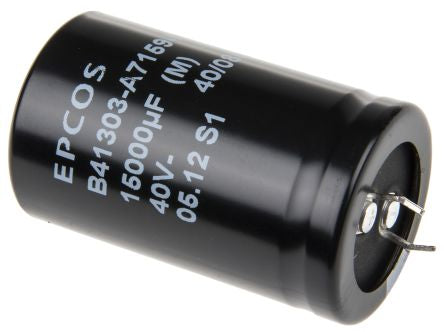

EPCOS 15000μF 40V dc Aluminium Electrolytic Capacitor, Through Hole 30 (Dia.) x 50mm +85°C 30mm 10mm [B41303A7159M]; 171-1125
by EPCOS
0₫
Mã kho: 1711125
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 15000 µF |
| Voltage | 40 V dc |
| Mounting Type | Snap-In |
| Technology | Electrolytic |
| Dimensions | 30 (Dia.) x 50mm |
| Height | 50mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 30mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 2000h |
| Lead Pitch | 10mm |
| Series | B41303 |
| Ripple Current | 3.3A |
| Tolerance | ±20% |
| Equivalent Series Resistance | 27mΩ |
