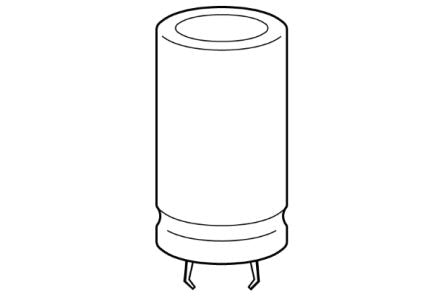

EPCOS 1000μF 100V dc Aluminium Electrolytic Capacitor, Through Hole 25.4 (Dia.) ´ 30mm +105°C 25.4mm 10mm [B41252B9108M000]; 171-3254
by EPCOS
0₫
Mã kho: 1713254
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 1000 µF |
| Voltage | 100 V dc |
| Mounting Type | Snap-In |
| Technology | Electrolytic |
| Dimensions | 25.4 (Dia.) ´ 30mm |
| Height | 30mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 25.4mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 10mm |
| Series | B41252 |
| Polarised | Polar |
| Tolerance | ±20% |
| Ripple Current | 1.77A |
| Dissipation Factor | 0.0015 |
