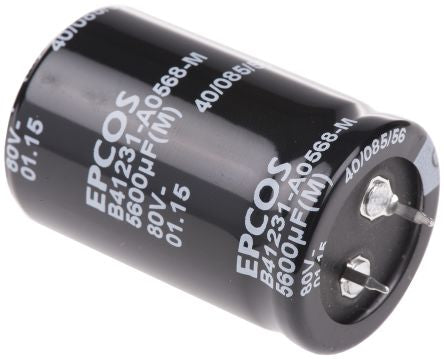

EPCOS 5600μF 80V dc Aluminium Electrolytic Capacitor, Through Hole 30 (Dia.) x 45mm +85°C 30mm 10mm [B41231A0568M000]; 771-4771
by EPCOS
0₫
Mã kho: 7714771
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 5600 µF |
| Voltage | 80 V dc |
| Mounting Type | Snap-In |
| Technology | Electrolytic |
| Dimensions | 30 (Dia.) x 45mm |
| Height | 45mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 30mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 10mm |
| Lifetime | 2000h |
| Series | B41231 |
| Ripple Current | 5.91A |
| Tolerance | ±20% |
| Leakage Current | <=0.02 μA |
