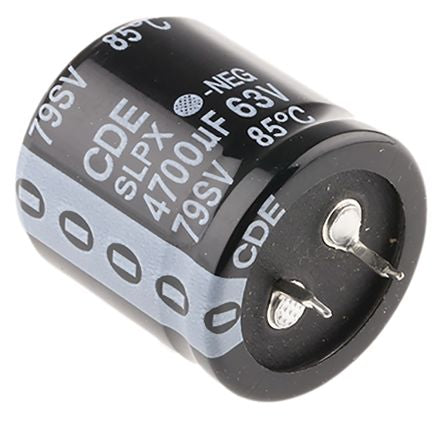

Cornell-Dubilier 4700μF 63V dc Aluminium Electrolytic Capacitor, Through Hole 30 (Dia.) x 30mm +85°C 30mm 10mm [SLPX472M063E3P3]; 744-1174
0₫
Mã kho: 7441174
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 4700 µF |
| Voltage | 63 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 30 (Dia.) x 30mm |
| Height | 30mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 30mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 10mm |
| Lifetime | 3000h |
| Series | SLPX |
| Ripple Current | 4.43A |
| Tolerance | ±20% |
| Equivalent Series Resistance | 64mΩ |
| Leakage Current | <=3√CV μA @ 5 min |
