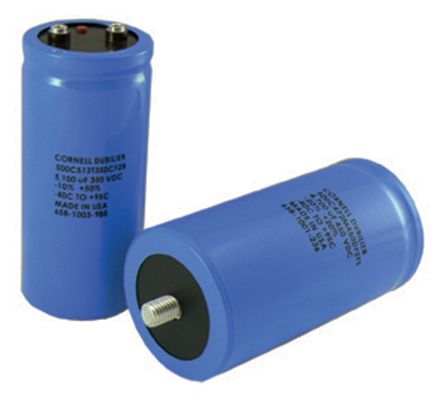

Cornell-Dubilier 3300μF 450V dc Aluminium Electrolytic Capacitor, Chassis Mount 76.2 x 130.18mm +105°C 76.2mm 31.75mm [550C332T450DE2B]; 872-0190
0₫
Mã kho: 8720190
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 3300 µF |
| Voltage | 450 V dc |
| Mounting Type | Screw Mount |
| Technology | Electrolytic |
| Dimensions | 76.2 x 130.18mm |
| Height | 130.18mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 76.2mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 31.75mm |
| Lifetime | 5000 h @ 85 °C, 10000 h @ 105 °C |
| Series | 550C |
| Tolerance | -10 → +50% |
| Equivalent Series Resistance | 26.3mΩ |
| Leakage Current | ≤3 √CV μA, 4 mA |
| Ripple Current | 6.9 A @ 105 °C, 19.2 A @ 85 °C |
