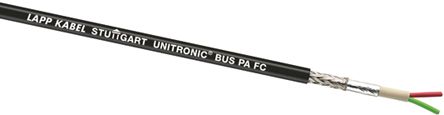

Lapp 2 Core Screened Polyvinyl Chloride PVC Sheath Bus Cable, 1 mm² CSA [2170335]; 807-9578
by Lapp
0₫
Mã kho: 8079578
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2 |
| Cross Sectional Area | 1 mm² |
| Screened/Unscreened | Screened |
| Outer Diameter | 8mm |
| Screen Type | Copper Braid |
| Voltage Rating | 250 V |
| Sheath Material | Polyvinyl Chloride PVC |
| American Wire Gauge | 17 AWG |
| Cable Shape | Single Core |
| Sheath Colour | Black/Blue |
| Characteristic Impedance | 100 Ω |
| Minimum Operating Temperature | -30°C |
| Oil Resistant | Yes |
| Maximum Operating Temperature | +80°C |
| Conductor Resistance | 44 Ω/km |
| Conductor Material | Copper |
| Minimum Bend Radius | 10 x D mm |
| Armoured | Yes |
