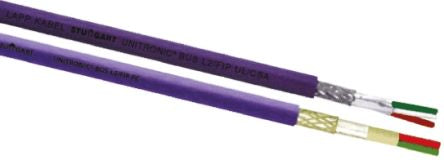

Lapp 2 Core Screened Polyurethane PUR Sheath Bus Cable, 0.25 mm² CSA [2170222]; 787-4050
by Lapp
0₫
Mã kho: 7874050
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2 |
| Cross Sectional Area | 0.25 mm² |
| Screened/Unscreened | Screened |
| Outer Diameter | 8mm |
| Screen Type | Copper Braid |
| Voltage Rating | 250 V |
| Sheath Material | Polyurethane PUR |
| American Wire Gauge | 24 |
| Cable Shape | Multicore |
| Sheath Colour | Purple |
| Characteristic Impedance | 270 Ω |
| Size of Strands | 0.64 mm |
| Conductor Material | Bare Copper |
| Minimum Bend Radius | 65 mm |
| Minimum Operating Temperature | -30°C |
| Conductor Resistance | 145 Ω/km |
| Oil Resistant | Yes |
| Maximum Operating Temperature | +70°C |
