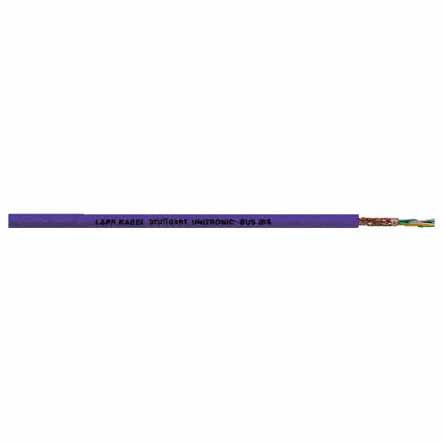

Lapp Polyvinyl Chloride PVC Sheath Bus Cable, 0.22 mm², 1 mm² CSA [2170208]; 444-0109
by Lapp
0₫
Mã kho: 4440109
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cross Sectional Area | 0.22 mm², 1 mm² |
| Outer Diameter | 7.9mm |
| Voltage Rating | 250 V |
| Sheath Material | Polyvinyl Chloride PVC |
| American Wire Gauge | 17, 24 AWG |
| Cable Shape | Twisted Pair |
| Insulation Material | PE |
| Sheath Colour | Purple |
| Maximum Operating Temperature | +80°C |
| Oil Resistant | Yes |
| Armoured | Yes |
| Characteristic Impedance | 100 Ω |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -40°C |
