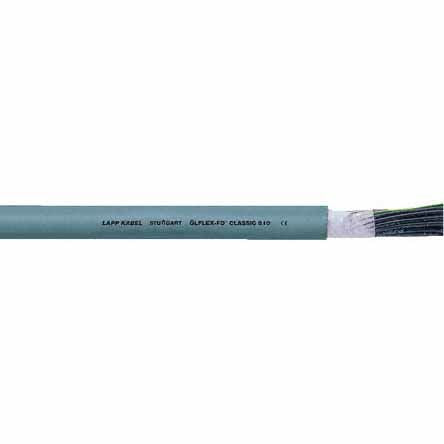

Lapp 5 Core Polyvinyl Chloride PVC Sheath Actuator/Sensor Cable, 1.5 mm² CSA [0026152]; 387-6973
by Lapp
0₫
Mã kho: 3876973
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 5 |
| Cross Sectional Area | 1.5 mm² |
| Screened/Unscreened | Unscreened |
| Length | 25m |
| Outer Diameter | 9.6mm |
| Voltage Rating | 500 V |
| Sheath Material | Polyvinyl Chloride PVC |
| American Wire Gauge | 16 |
| Cable Shape | Multicore |
| Earth Cable | Yes |
| Insulation Material | PVC |
| Sheath Colour | Grey |
| Oil Resistant | Yes |
| Minimum Operating Temperature | 0°C |
| Number of Strands | 84 |
| Maximum Operating Temperature | +70°C |
| Size of Strands | 34 AWG |
| Conductor Material | Copper |
| Minimum Bend Radius | 20 x D |
| Core Strands | 84/34 |
