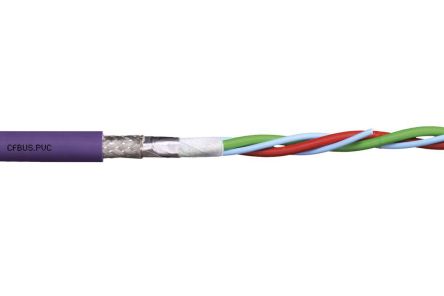

chainflex CFBUS bus cable PVC, GigE (4x( [CFBUS.PVC.045]; 185-4935
by Igus
0₫
Mã kho: 1854935
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Cores | 8 |
Cross Sectional Area | 0.15 mm² |
Screened/Unscreened | Screened |
Outer Diameter | 7.5mm |
Screen Type | Tinned Copper Braid |
Voltage Rating | 50 V |
Sheath Material | Polyvinyl Chloride PVC |
American Wire Gauge | 26 AWG |
Cable Shape | Multicore |
Insulation Material | TPE |
Sheath Colour | Purple |
Standards Met | CE, CEI 20-35, CRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -5°C |
Fire Behaviour | Flame Retardant |
Bedding Material | PVC |
Conductor Material | Copper |
Current Rating | 2.5 A |
Minimum Bend Radius | 7 x D |
Oil Resistant | Yes |
Conductor Resistance | 145 Ω/km |
Shielding | Tinned Copper Braid |
Characteristic Impedance | 100 Ω |
