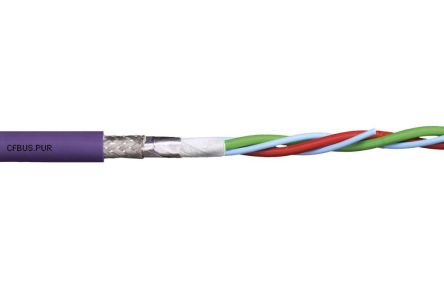

chainflex CFBUS bus cable PUR, Ethernet/ [CFBUS.PUR.040]; 185-4925
by Igus
0₫
Mã kho: 1854925
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 0.25 mm² |
| Screened/Unscreened | Screened |
| Outer Diameter | 6.5mm |
| Screen Type | Tinned Copper Braid |
| Voltage Rating | 50 V |
| Sheath Material | Polyurethane PUR |
| American Wire Gauge | 24 AWG |
| Cable Shape | Multicore |
| Insulation Material | TPE |
| Sheath Colour | Purple |
| Standards Met | CE, CEI 20-35, CRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 |
| Oil Resistant | Yes |
| Maximum Operating Temperature | +70°C |
| Fire Behaviour | Flame Retardant |
| Bedding Material | PVC |
| Conductor Material | Copper |
| Current Rating | 0.208333333333333 |
| Minimum Operating Temperature | -20°C |
| Conductor Resistance | 94 Ω/km |
| Characteristic Impedance | 100 Ω |
| Shielding | Tinned Copper Braid |
| Minimum Bend Radius | 7 x D |
