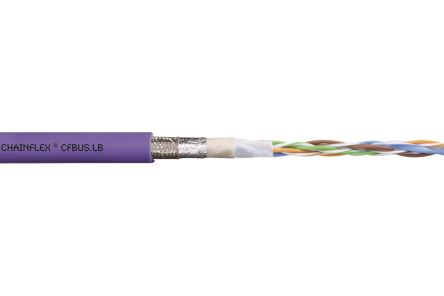

chainflex bus cable CFBUS.LB Ethernet/Pr [CFBUS.LB.060]; 185-4919
by Igus
0₫
Mã kho: 1854919
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 0.38 mm² |
| Screened/Unscreened | Screened |
| Outer Diameter | 7.5mm |
| Screen Type | Tinned Copper Braid |
| Voltage Rating | 50 V |
| Sheath Material | Thermoplastic Elastomers TPE |
| American Wire Gauge | 22 AWG |
| Cable Shape | Multicore |
| Insulation Material | TPE |
| Shielding | Tinned Copper Braid |
| Minimum Bend Radius | 4 x D |
| Current Rating | 0.291666666666667 |
| Conductor Material | Copper |
| Fire Behaviour | Halogen Free |
| Minimum Operating Temperature | -35°C |
| Maximum Operating Temperature | +70°C |
| Standards Met | CE, CTP, DIN EN 60754, DIN EN 60811-404, DIN EN ISO 14644-1, EAC |
| Oil Resistant | Yes |
| Characteristic Impedance | 100 Ω |
| Conductor Resistance | 51 Ω/km |
