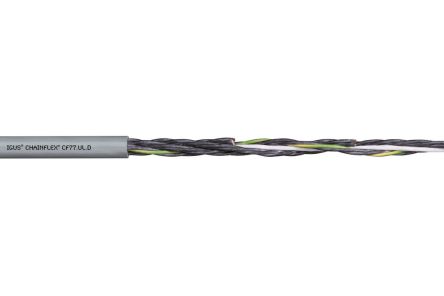

chainflex CF77.UL.D control cable PUR 5G [CF77.UL.25.05.D]; 185-4899
by Igus
0₫
Mã kho: 1854899
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 5 |
| Cross Sectional Area | 2.5 mm² |
| Screened/Unscreened | Unscreened |
| Outer Diameter | 10.5mm |
| Voltage Rating | 1 kV |
| Sheath Material | Polyurethane PUR |
| American Wire Gauge | 14 AWG |
| Cable Shape | Multicore |
| Earth Cable | Yes |
| Insulation Material | TPE |
| Sheath Colour | Grey |
| Conductor Material | Copper |
| Oil Resistant | Yes |
| Standards Met | CE, CEI 20-35, CRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 |
| Current Rating | 30 A |
| Maximum Operating Temperature | +80°C |
| Conductor Resistance | 8 Ω/km |
| Fire Behaviour | Flame Retardant |
| Minimum Operating Temperature | -25°C |
| Minimum Bend Radius | 4 x D |
