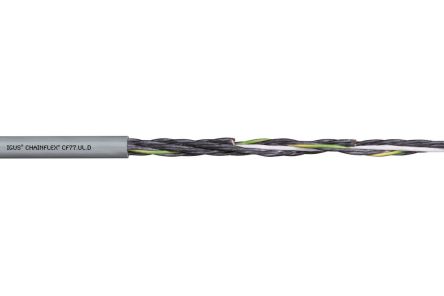

chainflex CF77.UL.D control cable PUR 3G [CF77.UL.25.03.D]; 185-4897
by Igus
0₫
Mã kho: 1854897
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Cores | 3 |
Cross Sectional Area | 2.5 mm² |
Screened/Unscreened | Unscreened |
Outer Diameter | 8.5mm |
Voltage Rating | 1 kV |
Sheath Material | Polyurethane PUR |
American Wire Gauge | 14 AWG |
Cable Shape | Multicore |
Earth Cable | Yes |
Insulation Material | TPE |
Sheath Colour | Grey |
Fire Behaviour | Flame Retardant |
Conductor Material | Copper |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +80°C |
Standards Met | CE, CEI 20-35, CRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 |
Oil Resistant | Yes |
Current Rating | 30 A |
Minimum Bend Radius | 4 x D |
Conductor Resistance | 8 Ω/km |
