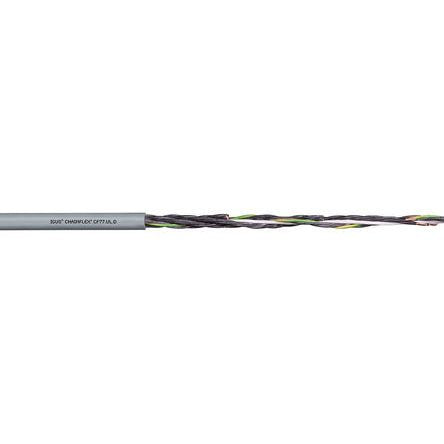

Igus 5 Core Polyurethane PUR Sheath Actuator/Sensor Cable, 0.75 mm² CSA [CF77.UL.07.05.D]; 765-4257
by Igus
0₫
Mã kho: 7654257
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 5 |
| Cross Sectional Area | 0.75 mm² |
| Screened/Unscreened | Unscreened |
| Outer Diameter | 7mm |
| Voltage Rating | 300/500 V |
| Sheath Material | Polyurethane PUR |
| American Wire Gauge | 18 |
| Cable Shape | Multicore |
| Earth Cable | Yes |
| Insulation Material | TPE |
| Sheath Colour | Grey |
| Oil Resistant | Yes |
| Minimum Operating Temperature | -35°C |
| Minimum Bend Radius | 4 x D |
| Conductor Material | Bare Copper |
| Maximum Operating Temperature | +80°C |
