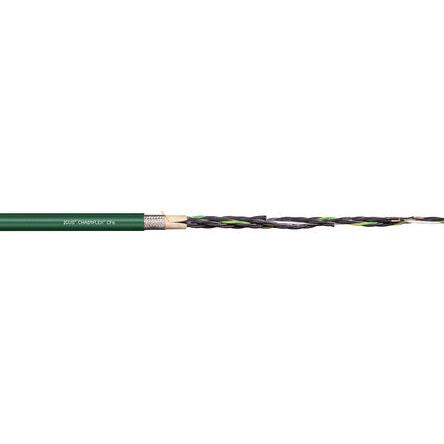

Igus 3 Core Screened Polyvinyl Chloride PVC Sheath Actuator/Sensor Cable, 1 mm² CSA [CF6.10.03]; 765-4196
by Igus
0₫
Mã kho: 7654196
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 1 mm² |
| Screened/Unscreened | Screened |
| Outer Diameter | 8.5mm |
| Screen Type | Braid |
| Voltage Rating | 300/500 V |
| Sheath Material | Polyvinyl Chloride PVC |
| American Wire Gauge | 17 |
| Cable Shape | Multicore |
| Earth Cable | Yes |
| Insulation Material | PVC |
| Sheath Colour | Green |
| Maximum Operating Temperature | +70°C |
| Conductor Material | Bare Copper |
| Minimum Bend Radius | 4 x D |
| Oil Resistant | Yes |
| Minimum Operating Temperature | -5°C |
