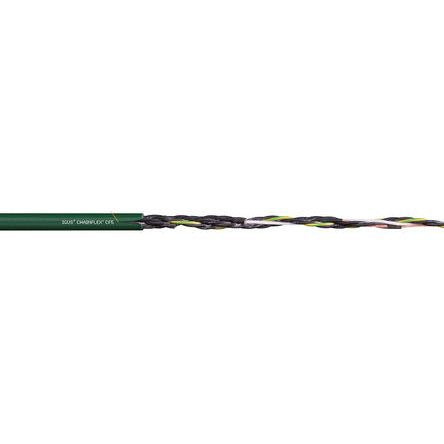

Igus 2 Core Polyvinyl Chloride PVC Sheath Actuator/Sensor Cable, 0.5 mm² CSA [CF5.05.02]; 765-4061
by Igus
0₫
Mã kho: 7654061
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2 |
| Cross Sectional Area | 0.5 mm² |
| Screened/Unscreened | Unscreened |
| Outer Diameter | 6mm |
| Voltage Rating | 300/500 V |
| Sheath Material | Polyvinyl Chloride PVC |
| American Wire Gauge | 20 |
| Cable Shape | Multicore |
| Insulation Material | PVC |
| Sheath Colour | Green |
| Maximum Operating Temperature | +70°C |
| Conductor Material | Bare Copper |
| Oil Resistant | Yes |
| Minimum Operating Temperature | -5°C |
| Minimum Bend Radius | 4 x D |
