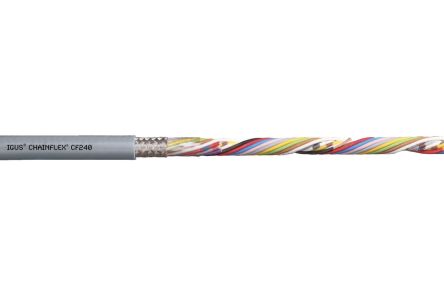

chainflex CF240 data cable PVC (4x0.25)C [CF240.02.04]; 185-4877
by Igus
0₫
Mã kho: 1854877
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Cores | 4 |
Cross Sectional Area | 0.25 mm² |
Screened/Unscreened | Screened |
Outer Diameter | 5.5mm |
Screen Type | Tinned Copper Braid |
Voltage Rating | 300 V |
Sheath Material | Polyvinyl Chloride PVC |
American Wire Gauge | 24 AWG |
Cable Shape | Multicore |
Insulation Material | PVC |
Sheath Colour | Grey |
Fire Behaviour | Flame Retardant |
Conductor Material | Copper |
Oil Resistant | Yes |
Standards Met | CE, CEI 20-35, CRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -5°C |
Current Rating | 0.208333333333333 |
Minimum Bend Radius | 5 x D |
Conductor Resistance | 79 Ω/km |
Shielding | Tinned Copper Braid |
