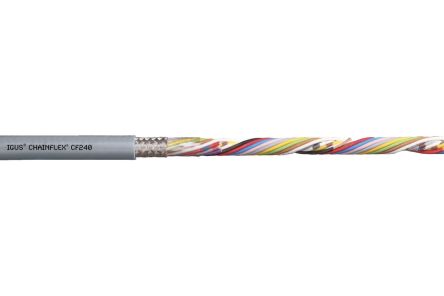

chainflex CF240 data cable PVC (7x0.14)C [CF240.01.07]; 185-4873
by Igus
0₫
Mã kho: 1854873
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 7 |
| Cross Sectional Area | 0.14 mm² |
| Screened/Unscreened | Screened |
| Outer Diameter | 6mm |
| Screen Type | Tinned Copper Braid |
| Voltage Rating | 300 V |
| Sheath Material | Polyvinyl Chloride PVC |
| American Wire Gauge | 26 AWG |
| Cable Shape | Multicore |
| Insulation Material | PVC |
| Sheath Colour | Grey |
| Oil Resistant | Yes |
| Standards Met | CE, CEI 20-35, CRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 |
| Shielding | Tinned Copper Braid |
| Conductor Resistance | 138 Ω/km |
| Minimum Operating Temperature | -5°C |
| Fire Behaviour | Flame Retardant |
| Conductor Material | Copper |
| Current Rating | 2.5 A |
| Minimum Bend Radius | 5 x D |
| Maximum Operating Temperature | +70°C |
