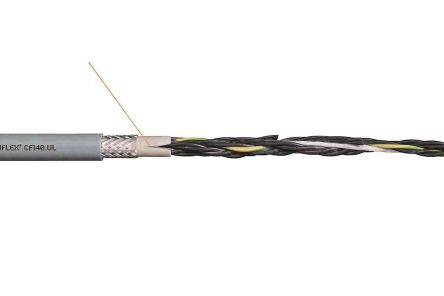

chainflex control cable CF140.UL PVC (4G [CF140.07.04.UL]; 185-4832
by Igus
0₫
Mã kho: 1854832
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 0.75 mm² |
| Screened/Unscreened | Screened |
| Length | 50m |
| Outer Diameter | 8.5mm |
| Screen Type | Tinned Copper Braid |
| Voltage Rating | 300/500 V |
| Sheath Material | Polyvinyl Chloride PVC |
| Cable Shape | Multicore |
| Earth Cable | Yes |
| Insulation Material | TPE |
| Sheath Colour | Grey |
| Series | Chainflex® CF140.UL |
| Number of Strands | 10 |
| Conductor Resistance | 26 Ω/km |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -5°C |
| Conductor Material | Copper |
| Current Rating | 14 A |
| Minimum Bend Radius | 7.5 x D |
