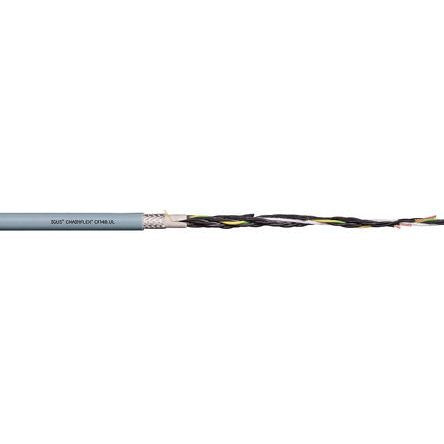

Igus 12 Core Screened Polyvinyl Chloride PVC Sheath Actuator/Sensor Cable, 0.25 mm² CSA [CF140.02.12.UL]; 765-4008
by Igus
0₫
Mã kho: 7654008
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 12 |
| Cross Sectional Area | 0.25 mm² |
| Screened/Unscreened | Screened |
| Outer Diameter | 10mm |
| Screen Type | Braid |
| Voltage Rating | 300 V |
| Sheath Material | Polyvinyl Chloride PVC |
| American Wire Gauge | 24 |
| Cable Shape | Multicore |
| Insulation Material | TPE |
| Sheath Colour | Grey |
| Minimum Operating Temperature | -5°C |
| Conductor Material | Bare Copper |
| Minimum Bend Radius | 7.5 x D |
| Maximum Operating Temperature | +70°C |
