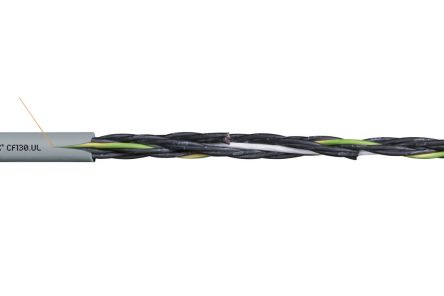

chainflex control cable PVC CF130.UL 36G [CF130.07.36.UL]; 185-4817
by Igus
0₫
Mã kho: 1854817
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Cores | 36 |
Cross Sectional Area | 0.75 mm² |
Screened/Unscreened | Unscreened |
Outer Diameter | 19mm |
Voltage Rating | 300 V |
Sheath Material | Polyvinyl Chloride PVC |
American Wire Gauge | 18 AWG |
Cable Shape | Multicore |
Earth Cable | Yes |
Insulation Material | TPE |
Fire Behaviour | Flame Retardant |
Conductor Resistance | 26 Ω/km |
Maximum Operating Temperature | +70°C |
Standards Met | CE, CEI 20-35, CRUus, CSA, CTP, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 |
Minimum Operating Temperature | -5°C |
Minimum Bend Radius | 4 x D |
Current Rating | 14 A |
Conductor Material | Copper |
