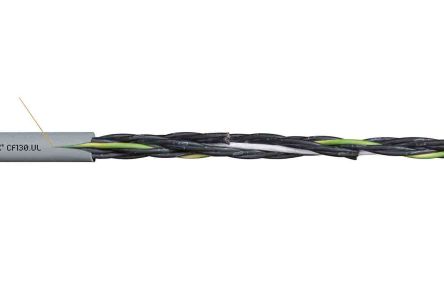

chainflex control cable PVC CF130.UL 5G0 [CF130.07.05.UL]; 185-4813
by Igus
0₫
Mã kho: 1854813
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 5 |
| Cross Sectional Area | 0.75 mm² |
| Screened/Unscreened | Unscreened |
| Length | 10m |
| Outer Diameter | 7mm |
| Voltage Rating | 300/500 V |
| Sheath Material | Polyvinyl Chloride PVC |
| Cable Shape | Multicore |
| Earth Cable | Yes |
| Insulation Material | TPE |
| Sheath Colour | Grey |
| Current Rating | 14 A |
| Number of Strands | 10 |
| Maximum Operating Temperature | +70°C |
| Series | Chainflex® CF130.UL |
| Minimum Operating Temperature | -5°C |
| Conductor Material | Copper |
| Minimum Bend Radius | 7.5 x D |
| Conductor Resistance | 26 Ω/km |
