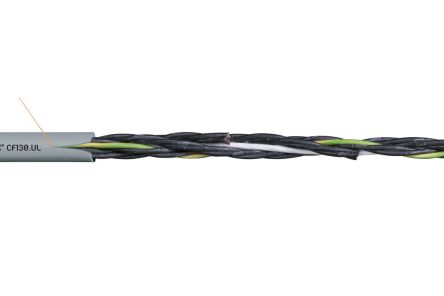

chainflex control cable PVC CF130.UL 3G0 [CF130.07.03.UL]; 185-4811
by Igus
0₫
Mã kho: 1854811
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 0.75 mm² |
| Screened/Unscreened | Unscreened |
| Outer Diameter | 6mm |
| Voltage Rating | 300 V |
| Sheath Material | Polyvinyl Chloride PVC |
| American Wire Gauge | 18 AWG |
| Cable Shape | Multicore |
| Earth Cable | Yes |
| Insulation Material | TPE |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +70°C |
| Standards Met | CE, CEI 20-35, CRUus, CSA, CTP, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 |
| Conductor Resistance | 26 Ω/km |
| Fire Behaviour | Flame Retardant |
| Conductor Material | Copper |
| Minimum Bend Radius | 4 x D |
| Current Rating | 14 A |
