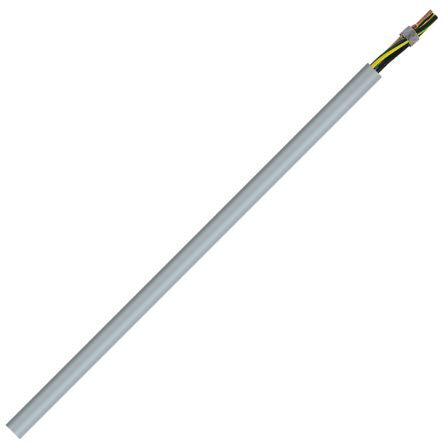

![CAE Groupe H112.0100 7970997](http://nguyenxuong.com/cdn/shop/products/R7970997-01_444x444.jpg?v=1594196758)
CAE Groupe 12 Core Polyvinyl Chloride PVC Sheath Multicore Actuator/Sensor Cable, 1 mm² CSA [H112.0100]; 797-0997
by CAE Groupe
0₫
Mã kho: 7970997
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Cores | 12 |
Cross Sectional Area | 1 mm² |
Screened/Unscreened | Unscreened |
Length | 50m |
Outer Diameter | 14.6mm |
Voltage Rating | 300 V, 500 V |
Sheath Material | Polyvinyl Chloride PVC |
American Wire Gauge | 17 AWG |
Cable Shape | Multicore |
Insulation Material | PVC |
Sheath Colour | Grey |
Oil Resistant | Yes |
Minimum Operating Temperature | -5°C |
Maximum Operating Temperature | +70°C |
Series | Harmoflex H05VV5-F |
Conductor Material | Bare Copper |
Minimum Bend Radius | 8 x D |
