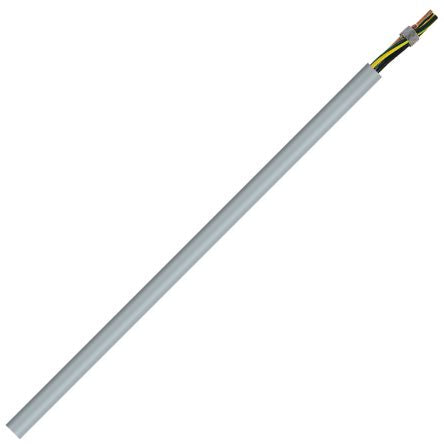

CAE Groupe 4 Core Polyvinyl Chloride PVC Sheath Multicore Actuator/Sensor Cable, 1 mm² CSA [H104.0100]; 797-1003
by CAE Groupe
0₫
Mã kho: 7971003
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Cores | 4 |
Cross Sectional Area | 1 mm² |
Screened/Unscreened | Unscreened |
Length | 50m |
Outer Diameter | 8.7mm |
Voltage Rating | 300 V, 500 V |
Sheath Material | Polyvinyl Chloride PVC |
American Wire Gauge | 17 AWG |
Cable Shape | Multicore |
Insulation Material | PVC |
Sheath Colour | Grey |
Minimum Operating Temperature | -5°C |
Maximum Operating Temperature | +70°C |
Oil Resistant | Yes |
Conductor Material | Bare Copper |
Minimum Bend Radius | 8 x D |
Series | Harmoflex H05VV5-F |
