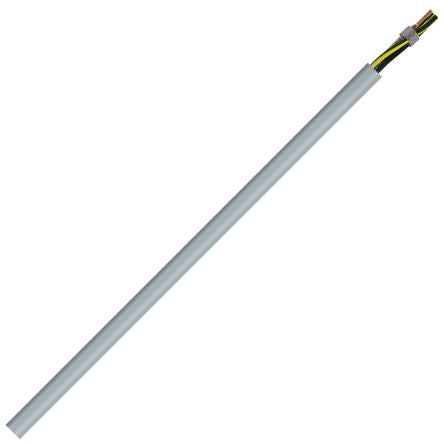

CAE Groupe 4 Core Polyvinyl Chloride PVC Sheath Multicore Actuator/Sensor Cable, 0.75 mm² CSA [H104.0075]; 797-0993
by CAE Groupe
0₫
Mã kho: 7970993
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 0.75 mm² |
| Screened/Unscreened | Unscreened |
| Length | 50m |
| Outer Diameter | 8.3mm |
| Voltage Rating | 300 V, 500 V |
| Sheath Material | Polyvinyl Chloride PVC |
| American Wire Gauge | 18 AWG |
| Cable Shape | Multicore |
| Insulation Material | PVC |
| Sheath Colour | Grey |
| Conductor Material | Bare Copper |
| Oil Resistant | Yes |
| Minimum Operating Temperature | -5°C |
| Minimum Bend Radius | 8 x D |
| Series | Harmoflex H05VV5-F |
| Maximum Operating Temperature | +70°C |
