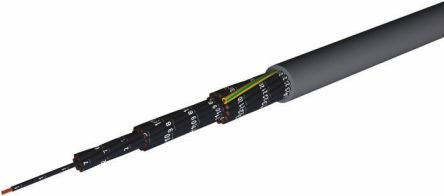

CAE Groupe 27 Core Polyvinyl Chloride PVC Sheath Actuator/Sensor Cable, 1 mm² CSA Flame Retardant [1270100]; 530-025
by CAE Groupe
0₫
Mã kho: 530025
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 27 |
| Cross Sectional Area | 1 mm² |
| Screened/Unscreened | Unscreened |
| Length | 50m |
| Outer Diameter | 15.5mm |
| Screen Type | Unscreened |
| Voltage Rating | 300/500 V |
| Sheath Material | Polyvinyl Chloride PVC |
| American Wire Gauge | 16 AWG |
| Cable Shape | Multicore |
| Earth Cable | Yes |
| Insulation Material | PVC |
| Sheath Colour | Grey |
| Size of Strands | 0.21 mm |
| Standards Met | Euroclass Eca |
| Series | CAELIFLEX |
| Fire Behaviour | Flame Retardant |
| Minimum Bend Radius | 10 x D |
| Conductor Material | Copper |
| Conductor Resistance | 19.5 Ω/km |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
