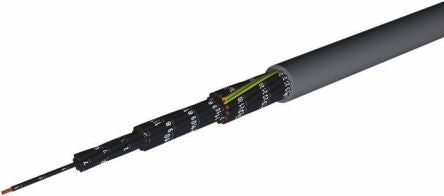

CAE Groupe 3 Core Polyvinyl Chloride PVC Sheath Actuator/Sensor Cable, 1.5 mm² CSA Flame Retardant [1030150T4000]; 529-469
by CAE Groupe
0₫
Mã kho: 529469
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 1.5 mm² |
| Screened/Unscreened | Unscreened |
| Length | 50m |
| Outer Diameter | 6.7mm |
| Screen Type | Unscreened |
| Voltage Rating | 300/500 V |
| Sheath Material | Polyvinyl Chloride PVC |
| American Wire Gauge | 14 AWG |
| Cable Shape | Multicore |
| Earth Cable | Yes |
| Insulation Material | PVC |
| Sheath Colour | Grey |
| Conductor Material | Copper |
| Series | CAELIFLEX |
| Size of Strands | 0.26 mm |
| Fire Behaviour | Flame Retardant |
| Maximum Operating Temperature | +80°C |
| Minimum Bend Radius | 10 x D |
| Minimum Operating Temperature | -40°C |
| Conductor Resistance | 13.3 Ω/km |
